jsTree At A Glance
Posted By : Sagar Watts | 14-Sep-2017

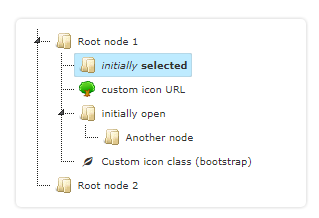

Sometime we may require to represent the data into a tree structure. We can achieve this goal very well through a jquery plugin. jsTree is a plugin that provides us an interactive tree. It is easily configurable and extendable. It not only provide support for HTML and JSON data, also provide support for data through AJAX . It can function properly in any content box or border box. Internally it uses jQuery events because of that the binding of various events is quite easy. The jsTree representation will look like
jsTree plugin provides us number of features.The few most important and worth noting features are :
-
Inline edit, create and delete.
-
Fuzzy searching.
-
Drag and drop.
-
Tri-state checkboxes.
-
Keyboard navigation
Personally, I feel the tri-state checkboxes and fuzzy searching is the most useful feature for the developers.
Here are the briefs steps we need to follow the add the jsTree instance in our web page.
-
Include jQuery and JStree library .
-
Container:It is where we want to represent/show our tree, usually a div.
Now that we have included the required libraries and created the container to withhold our tree. We can begin with creating an instance of the tree.To create and instance we need to use a below function :
$(function () { $('#container_div_id').jstree(); });
That’s all we need to do to get instance of the tree on our page. But that is not sufficient , we need to play with lots of events to make it work according to specific requirement. Since it uses the jQuery events, we can easily bind the various events with tree. For example :
$('#container_div_id').on("loaded.jstree", function (e, data) {
console.log(“tree is loaded”);
});
It provides us with lots of methods to work with jsTree instance .Once the tree instance is ready, we can invoke number of methods. For example :
$('#treeId').jstree(true).select_node('child_node_1');
