Jmeter Test Plan for Load Testing

                                                            Getting Started With Jmeter Sample Load Testing

This blog will let you to create a sample test plan for “Oodlestechnologies.com”.While Reading This Blog you should have the basic understanding of Jmeter Test Plan elements and it configuration. If you are completely fresh to jmeter just visit the Link Jmeter Configuration and Follow the steps mentioned below.

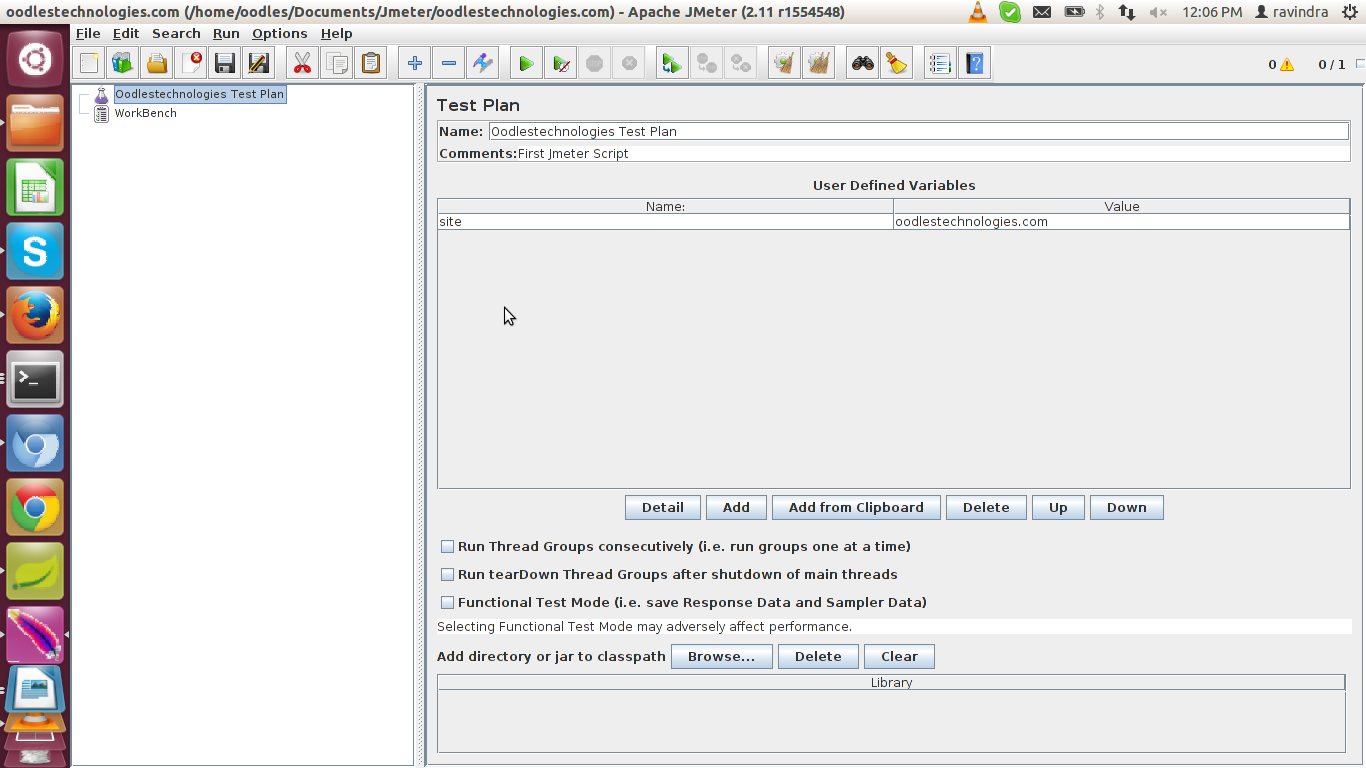

• Click Add button and create a user defind variable which we will use in a short while

  Name:- site

  Value:-Oodlestechnologies.com

• Right click on node Oodlestechnologies Test Plan > Add >Thread(users)>Thread Group

• Fill all its properties like

  Name-Oodlestechnologies User

   Comment-Visiting Home Page

  *leave all other properties as default

• Right click Oodlestechnologies User > Config Elements > HTTP Cache Manager

  *leave its properties as default

• Right click Oodlestechnologies User > Config Elements> HTTP Cookie Manager

  *leave its properties as default

• Right click Oodlestechnologies User > Sampler> HTTP Request

  Name-Oodlestechnologies Home Page

  Comments-HTTP request for Oodlestechnologies Home Page

  Server Name or Ip-${site}

  * site is the user defined variable created with test plan

  *leave all other field as default

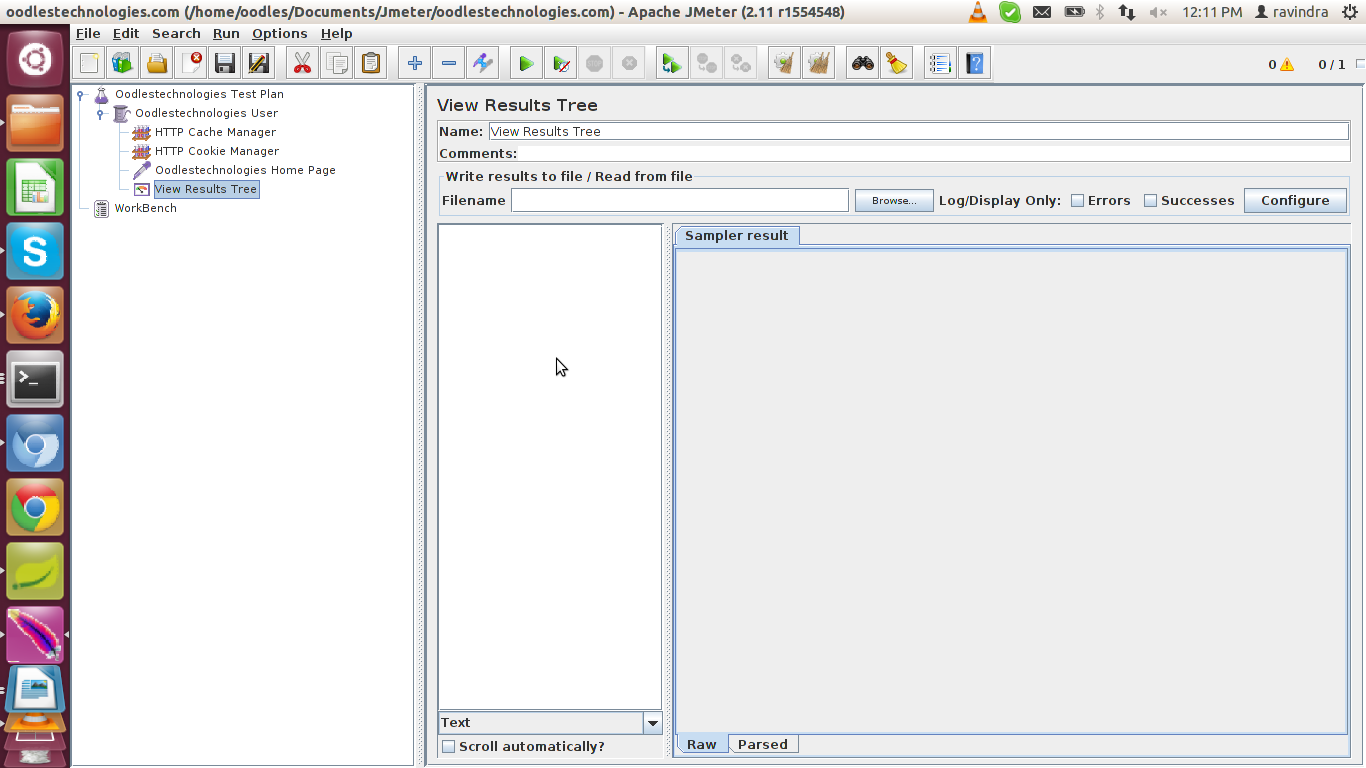

• Right click Oodlestechnologies User > Listener> View result Tree

• From the Run menu click Start and go to the View Result Tree, wait for few Seconds

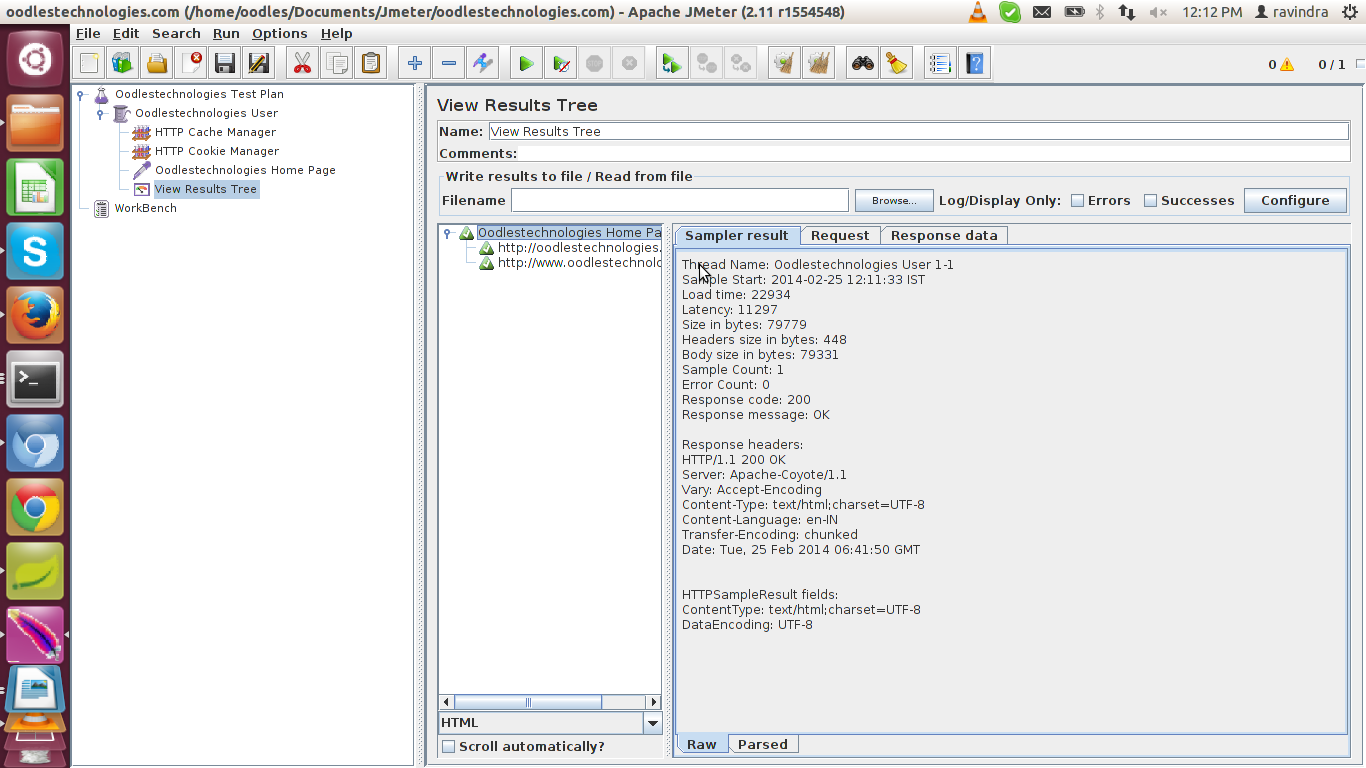

• Select the Green Node in View result Tree



• Response Message: OK confirms the success

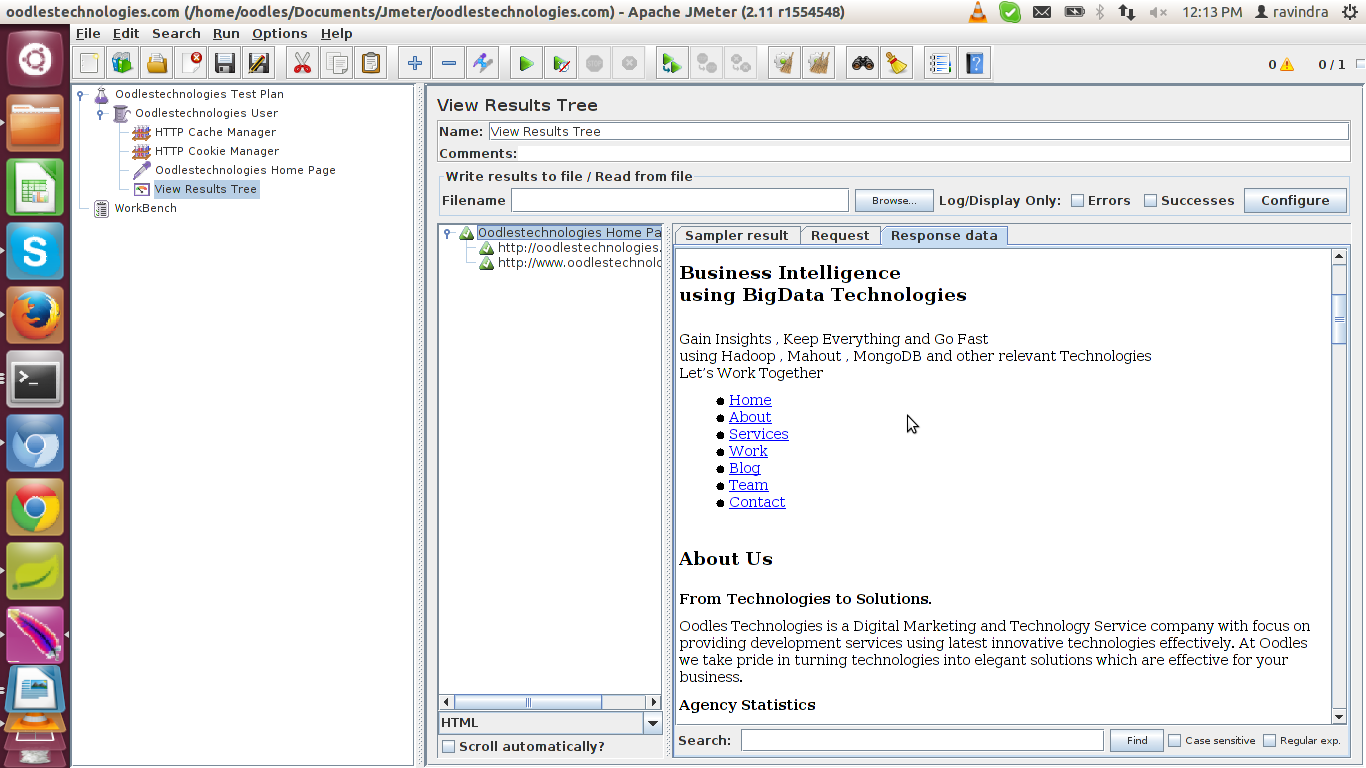

• Select Response Data



• The above page confirms the success

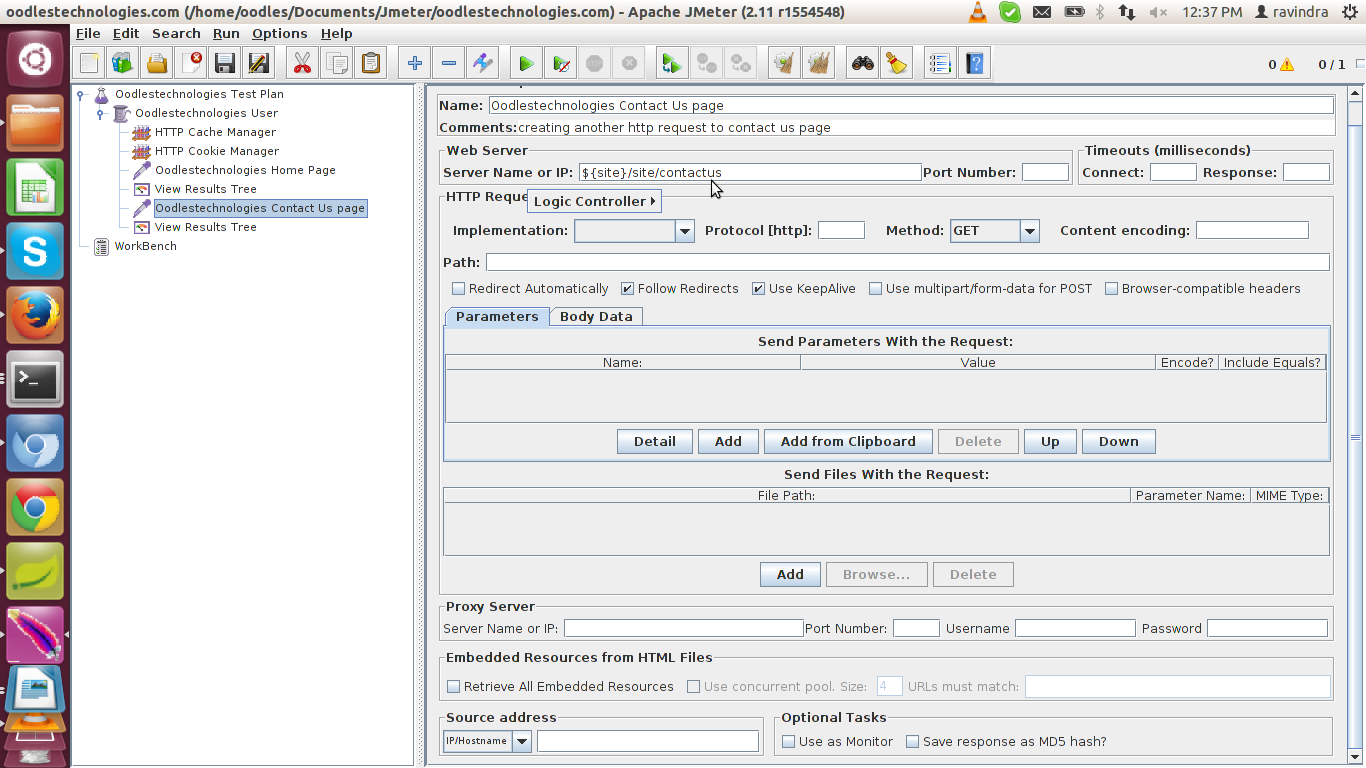

• Create another Sampler > HTTP Request

  Name- Oodlestechnologies ContactUs page

  Comments-creating another HTTP request

  Server Name or IP-${site}/site/contactus

• Add another Listener for this request

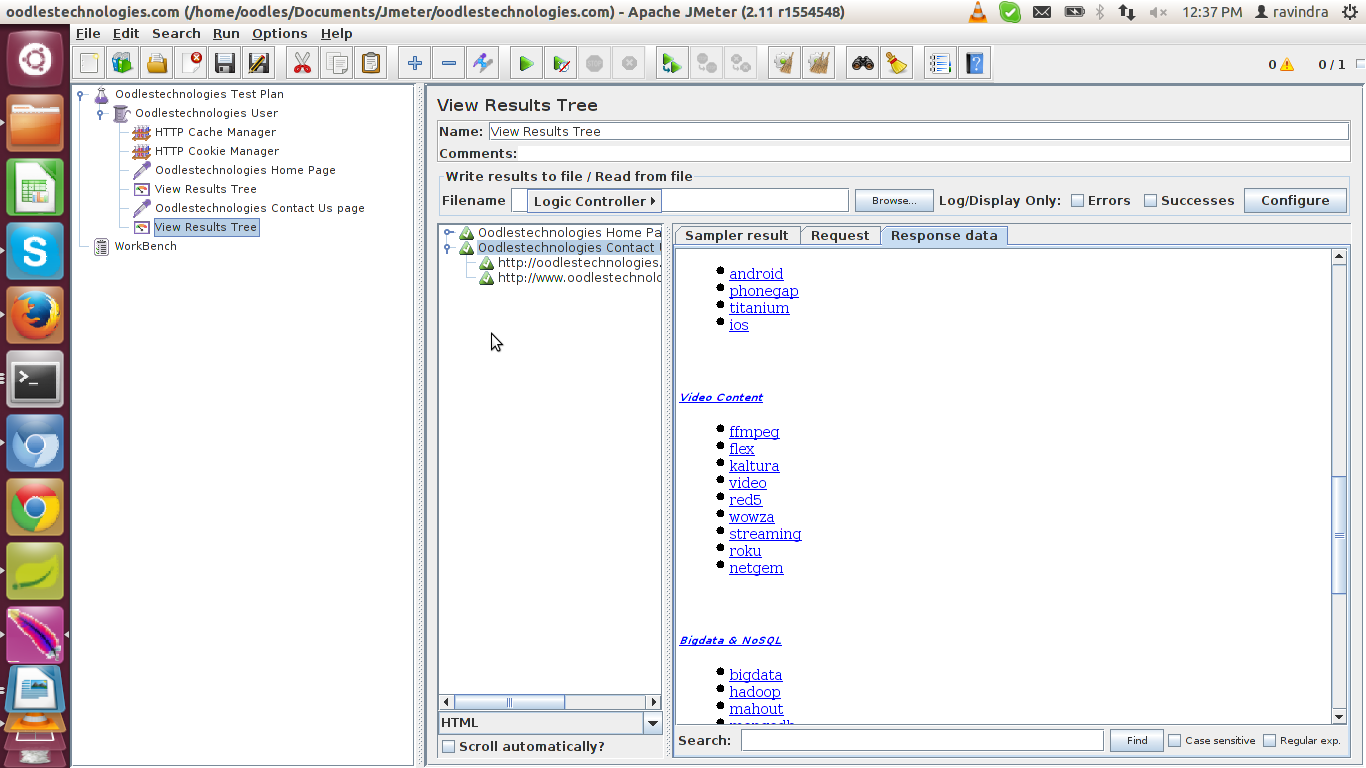

• Again Run>Start the test plan and in Oodlestechnologies ContactUs page response Data confirms the further success



from the above listener you have seen that the two request for home page and contact us page fires almost together, This seems unrealistic

So we will use Timer to add some delay between two request

18. Right click the Oodlestechnologies User > Timer > Constant Timer after first request

19. Clear the view result Ctrl+E

20. Oodlestechnologies User Thread increase the number and ranp up time to 5 and execute the test plan

21. By increasing the number of Threads will increase the users on that page, in similar way you can create test plan with request for every page and analyze the results will give you the load on your site.

Thanks.
