How to configure DNS proxy for docker containers
Posted By : Shiv Pujan Maurya | 18-Dec-2017
DNS servers play out the administration of settling a space name with an IP address and the other way around. When you arrange the firewall as a DNS intermediary, it goes about as a mediator amongst IPs and servers and as a DNS server by settling questions from its DNS reserve or sending inquiries to different DNS servers.
While assessing a container with hostname from localhost we face an issue that they cannot be called from host machine via their name. This issue can be resolved by implementing a local dns proxy server. This proxy server can run in container itself.
How does this configuration works
1. DNS first calls local hosts container
2. Then from local dns database
3. Last from remote DNS server.
For installing dns proxy with docker we are using an opensource dns repository (mageddo proxy server)
docker run --hostname dns.test --name dns-test-proxy-server -p 5380:5380 -v /opt/dns-proxy-server/conf:/app/conf -v /var/run/docker.sock:/var/run/docker.sock -v /etc/resolv.conf:/etc/resolv.conf defreitas/dns-proxy-server
Now we need to start some containers for testing dns
docker run -d --hostname debian.dev.intranet -e 'HOSTNAMES=debian2.dev.intranet,debian3.dev.intranet' debian sleep infinity

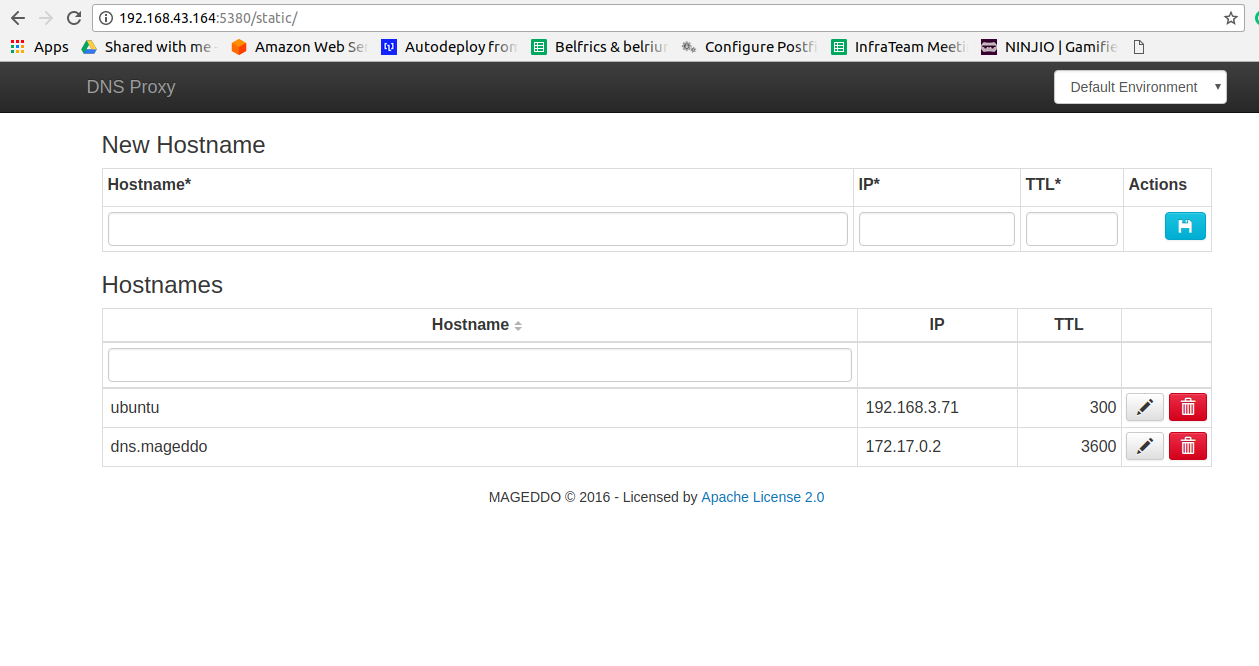

Lets check the web console for manual entries
Now lets set dns proxy as default proxy
sudo echo 'nameserver <192.168.43.164>' > /etc/resolv.conf
Lets run new cenos container
"sudo docker run centos"
Now check both containers
"sudo docker ps"
Connect to centos container and get hostname
"sudo docker exec -it <container id> /bin/bash"
Now ping centos from local host
ping <container host name>
